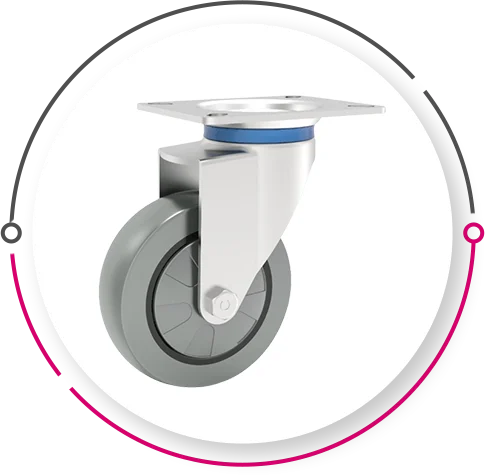

Anti-Static Rubber Castor Wheels
Anti-static rubber castor wheels are engineered with specialized conductive additives to safely dissipate electrostatic charges generated by friction during movement.

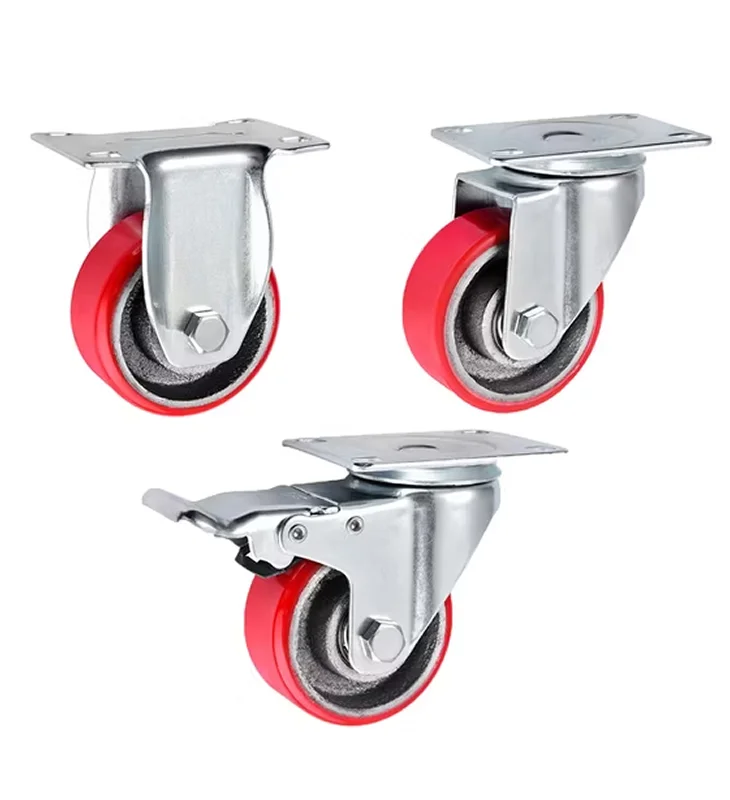

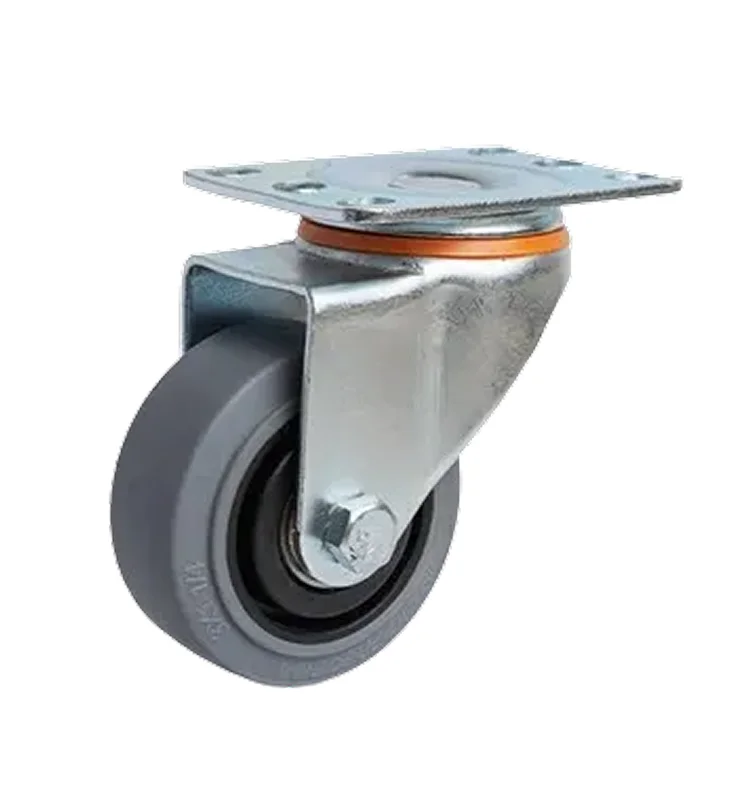

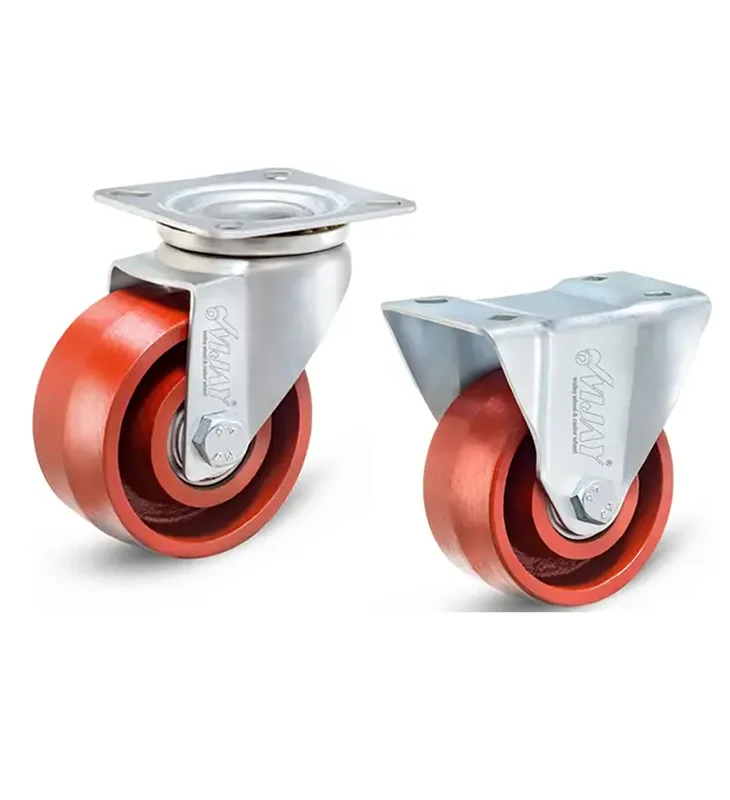

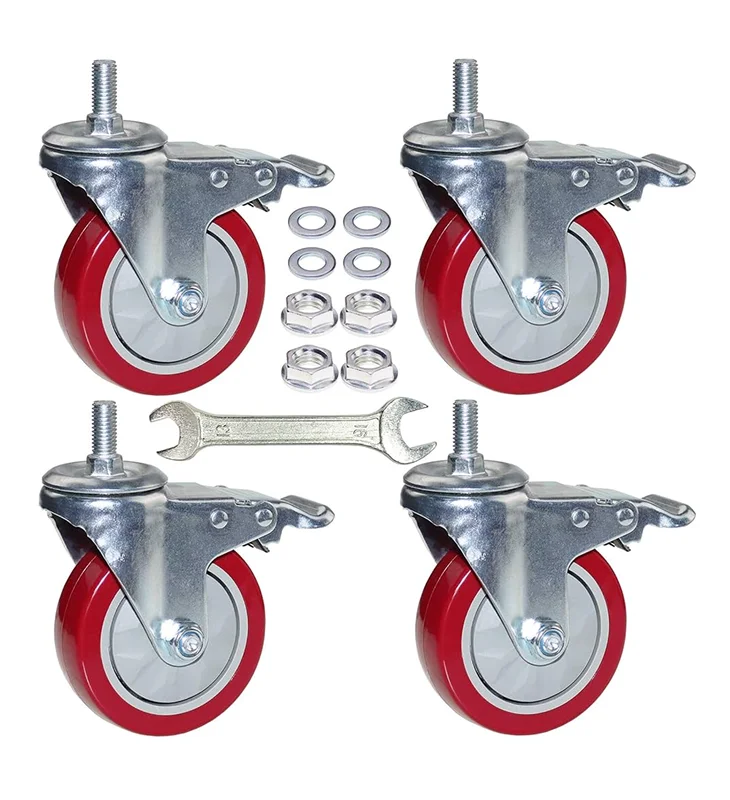

Rubber Caster Wheels Manufacturers in India
Modern Rubber & Plastic Products is a reliable manufacturer of rubber caster wheels, rubber castor wheel parts, rubber bushings, elbows etc., industrial rubber products in India. We can provide a variety of caster wheel products and services, which are made with application specific rubber, for reliable movement, load handling, vibration dampening and floor protection. We supply custom rubber products based on customer drawings, samples, dimensions and requirements, as well as standard products. We offer a wide range of products to provide reliable rubber solutions for automotive, engineering, material handling, and industrial applications in general.
High Quality
Best Price
Effective Service
Specifications of Rubber Castor Wheels
| Feature / Property | Technical Specification |
|---|---|
| Brand | Modern Rubber & Plastics |
| Product Type | Industrial & Commercial Rubber Castor Wheels |
| Wheel Diameter Range | 50 mm to 200 mm (2" to 8") standard; custom sizes available |
| Hardness Range | 50 to 90 Shore A (Customizable based on application) |
| Tread Material Options | Natural Rubber, Synthetic Rubber, TPR (Thermoplastic Rubber), Neoprene, Nitrile |
| Core Material Options | Cast Iron, Pressed Steel, Polypropylene (PP), Nylon |
| Load Capacity | 30 kg to 500+ kg per wheel (depends on diameter and core) |
| Temperature Resistance | -20°C to +80°C (Specialized compounds up to +120°C) |
| Mounting Options | Top Plate (Swivel / Fixed), Threaded Stem, Bolt Hole |
| Base Price | Starting from ₹120 / piece |
Types of Rubber Castor Wheels

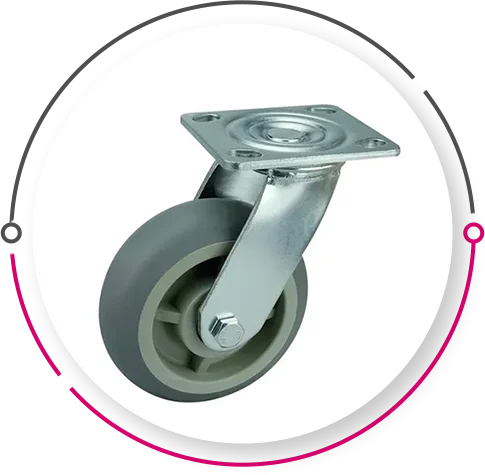

Conductive Rubber Castor Wheels
Conductive rubber wheels provide an ultra-low electrical resistance path (< 10⁵ ohms), offering higher charge dissipation capabilities than standard anti-static wheels to eliminate spark risks entirely.

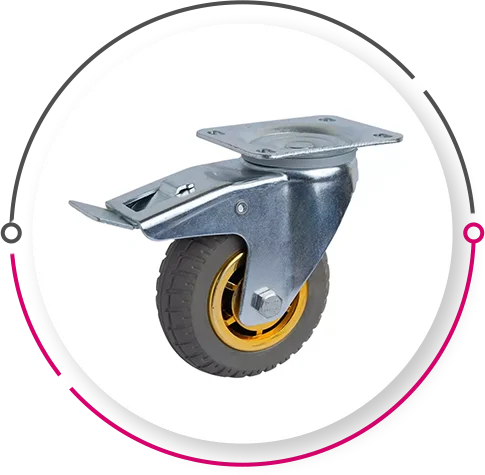

Elastic Rubber Castor Wheels
Molded from premium high-rebound natural or synthetic rubber compounds, elastic rubber wheels deliver maximum resilience, returning to their original shape instantly after rolling over obstacles.

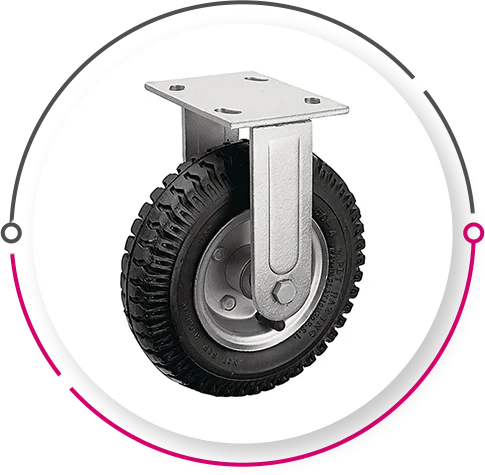

Hard Rubber Castor Wheels
Hard rubber wheels are compounded with a high durometer measurement (75 to 90 Shore A), providing exceptional structural rigidity while retaining the shock-absorbing benefits of rubber.

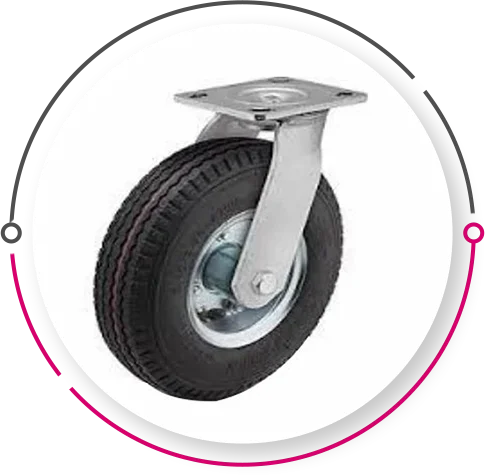

Pneumatic Rubber Castor Wheels
Pneumatic castor wheels feature air-filled rubber tires mounted on heavy-duty metal or plastic split rims, offering unmatched cushioning for delicate loads.

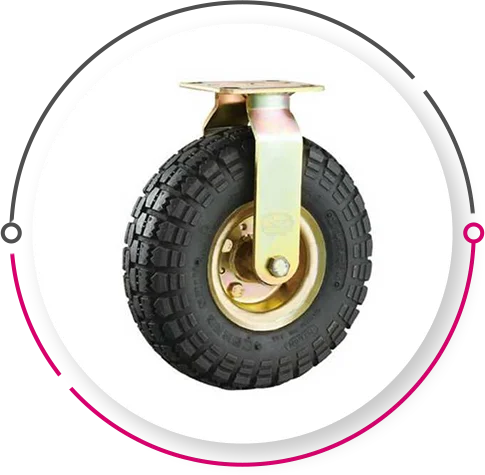

Semi-Pneumatic Rubber Castor Wheels
Semi-pneumatic wheels feature a thick, heavy-duty rubber wall enclosing a hollow air-pocket core that requires zero air inflation or pressure maintenance.

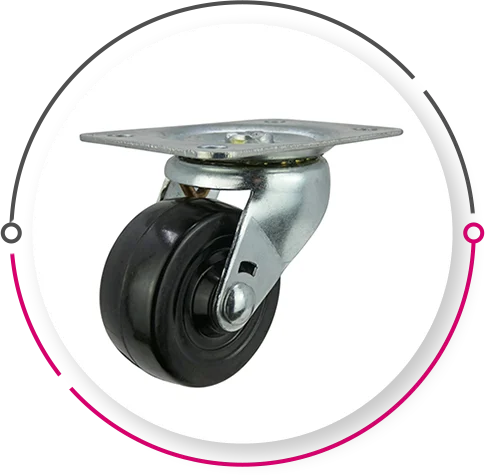

Soft Rubber Castor Wheels
Formulated with a lower durometer hardness (50 to 65 Shore A), soft rubber castor wheels prioritize traction, silent rolling, and total floor preservation over raw load capacity.

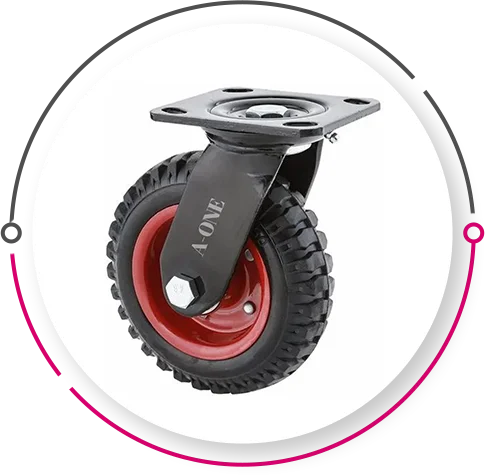

Solid Rubber Castor Wheels
Solid rubber wheels feature a solid rubber structure throughout or a thick, dense rubber tread permanently bonded to a rigid metal or polypropylene core.
 Castor Wheels_.webp "Thermoplastic Rubber (TPR) Castor Wheels")

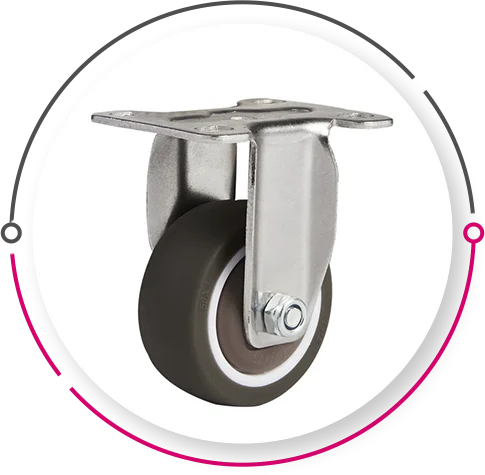

Thermoplastic Rubber (TPR) Castor Wheels
Thermoplastic Rubber (TPR) combines the floor-protective elasticity of rubber with the chemical durability and processing ease of thermoplastics.
Material Selection: Rubber vs. Polyurethane (PU) vs. Nylon
| Parameter | Rubber Castor Wheels | Polyurethane (PU) Wheels | Nylon Wheels |
|---|---|---|---|
| Noise Level | Extremely Quiet (Best dampening) | Moderate | Loud |
| Floor Protection | Excellent (Protects tile, epoxy, wood) | Good | Poor (Can score soft floors) |
| Load Capacity | Moderate to High (Up to 500 kg) | Very High (Up to 1,000+ kg) | High to Very High |
| Debris Accommodation | Superior (Swallows small debris) | Fair | Poor (Pushes or grinds debris) |
| Chemical Resistance | Good (Varies by compound) | Excellent (Oils, fuels) | Superior (Acids, harsh solvents) |
| Best Surface | Rough concrete, tiles, asphalt, uneven surfaces | Smooth concrete, factory floors | Smooth, flat hard floors |
How to Choose the Right Rubber Castor Wheel
To select the right rubber castor wheel for your equipment, consider the following factors:
Floor Surface & Environment
- Epoxy, Tile, or Wood: Choose soft rubber or TPR wheels for smooth movement and reduced floor marking.
- Rough Concrete or Outdoor Asphalt: Solid elastic rubber or pneumatic wheels suit uneven surfaces, cracks, gravel, and floor joints.
Total Load Capacity
Calculate the total operating load, including the cart or equipment weight and maximum payload. Select castor wheels with a suitable load capacity and safety margin based on operating conditions, wheel arrangement, and manufacturer's recommendations.
Noise & Shock Sensitivity
For hospitals, laboratories, audio-visual carts, and other noise-sensitive environments, soft rubber or TPR castor wheels help reduce rolling noise, vibration, and shock compared with rigid plastic wheels.
Special Workplace Requirements
For electronic equipment or areas requiring controlled static discharge, specify anti-static or conductive rubber wheels. Confirm the required electrical resistance and grounding arrangement before selection.
Industries We Serve
Plumbing & Bathware
Automobile
Home Appliance
Electrical
Oil & Gas
Medical Equipment
Application of Rubber Caster Wheels

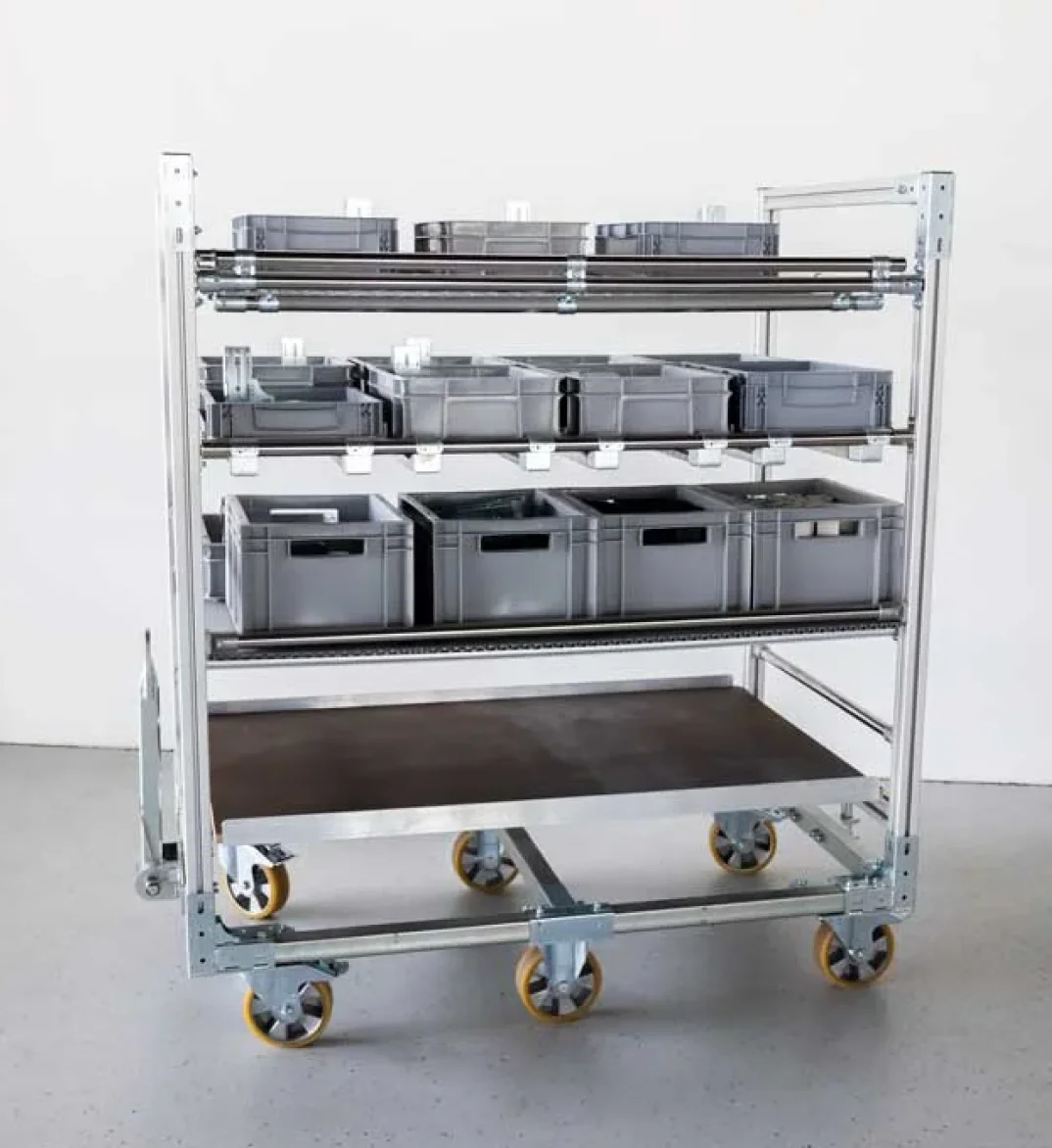

Trolleys and Carts
Smooth mobility solutions for various trolley and cart applications

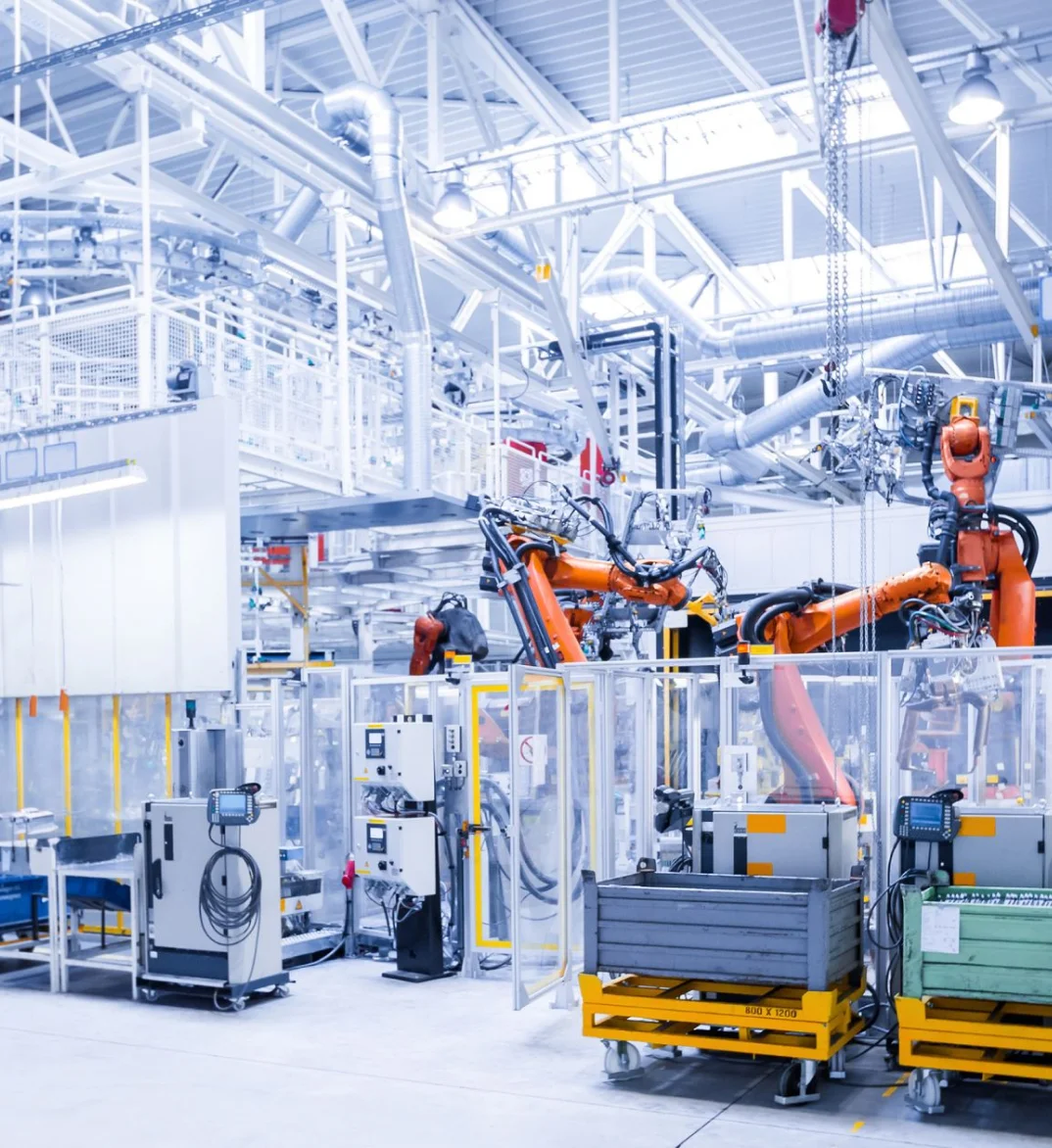

Industrial Equipment and Machinery
Heavy-duty wheels for industrial equipment mobility

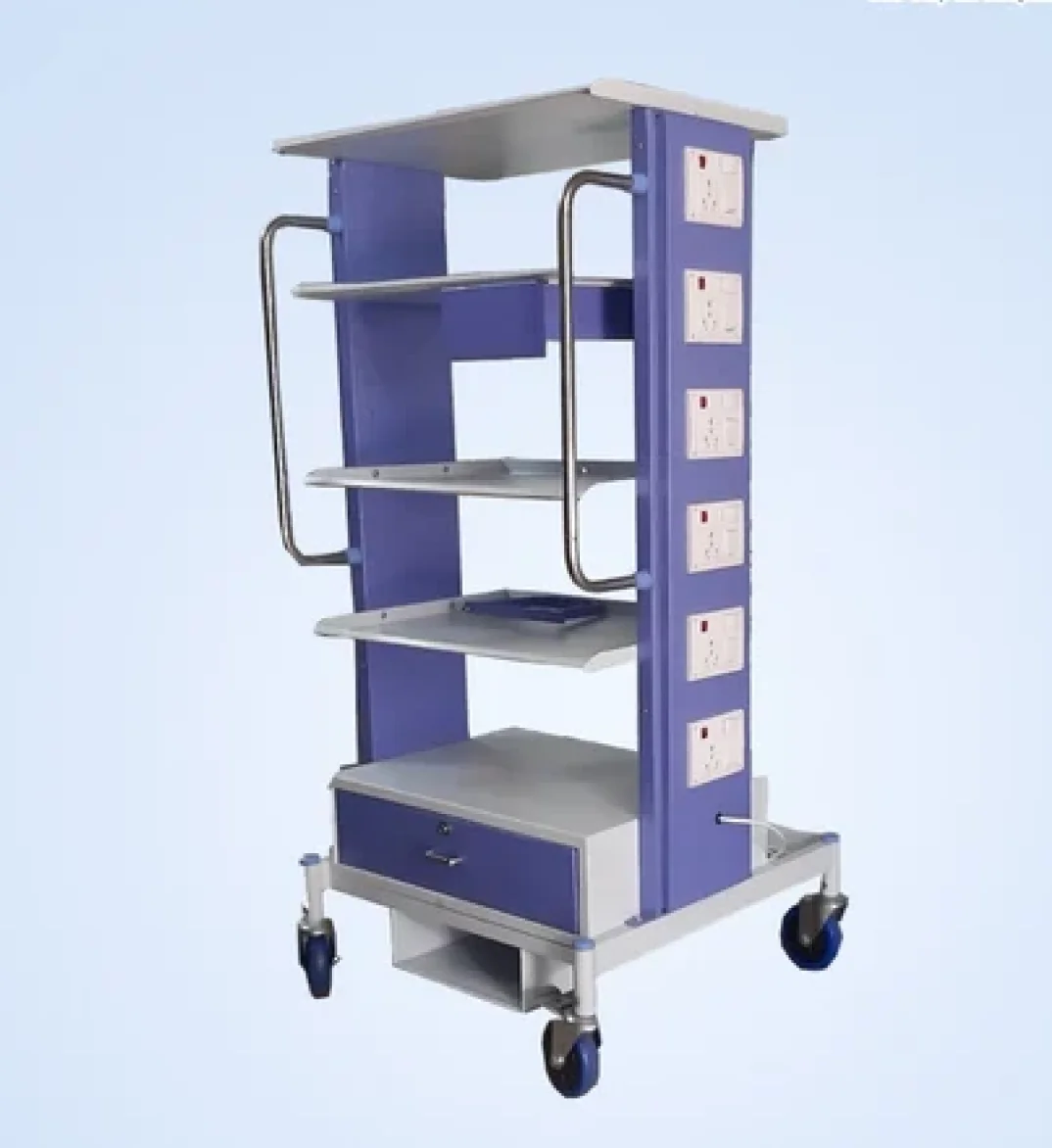

Medical and Hospital Equipment
Quiet, smooth-rolling wheels for healthcare environments
@2x.webp)
Furniture
Chairs, tables, racks with easy mobility

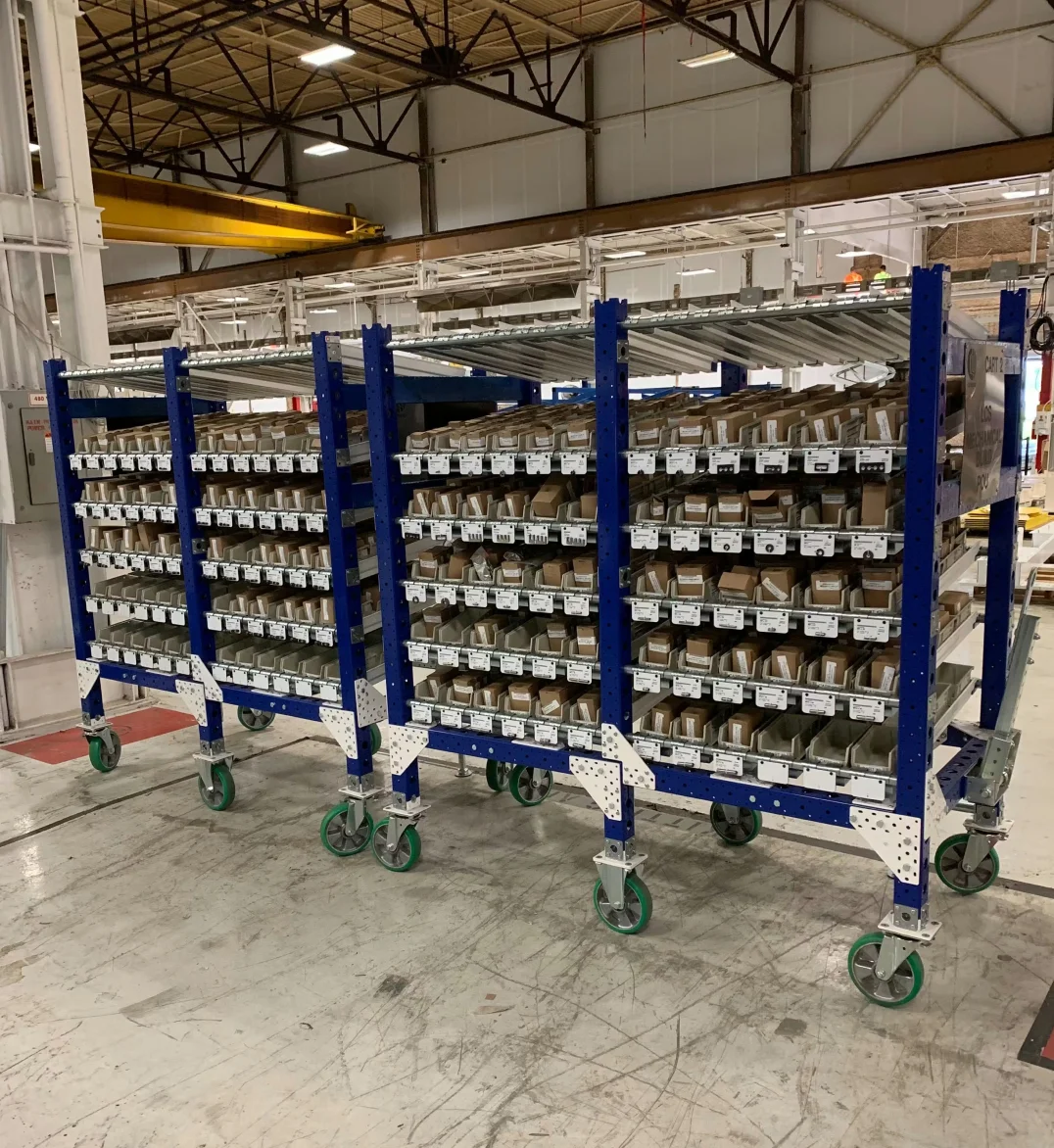

Material Handling
Warehouses and factories material handling solutions
Frequently Asked Questions
How do rubber caster wheels differ from other wheel materials?
They offer smoother movement, better grip, and reduced noise compared to metal or plastic wheels.
Are rubber caster wheels good for hardwood or delicate floors?
Yes, it helps to move anything from one place to another while protecting floors from scratches and marks.
What load capacity can rubber caster wheels handle?
The load capacity depends on the wheel size and design, ranging from light to heavy-duty use.
Are rubber caster wheels available in non-marking types?
Yes, we also provide non-marking rubber caster wheels.
Why choose Modern Rubber & Plastic for rubber caster wheels?
We always provide high-quality, durable, and customizable caster wheels that can work on many surfaces with reliable performance.
Will rubber castor wheels mark or scuff light-colored floors?
Standard black rubber wheels can leave carbon marks if dragged forcefully. However, our Thermoplastic Rubber (TPR) and non-marking grey/white synthetic rubber wheels are specifically formulated to leave no scuff marks, making them completely safe for tile, hardwood, marble, and epoxy-coated floors.
Can rubber castor wheels withstand outdoor environments and water exposure?
Yes. Rubber castors engineered with high-grade EPDM or synthetic natural blends offer strong resistance to water, UV exposure, and weathering. For wet environments, specify stainless steel swivel brackets and sealed precision bearings to prevent rust and internal corrosion.
