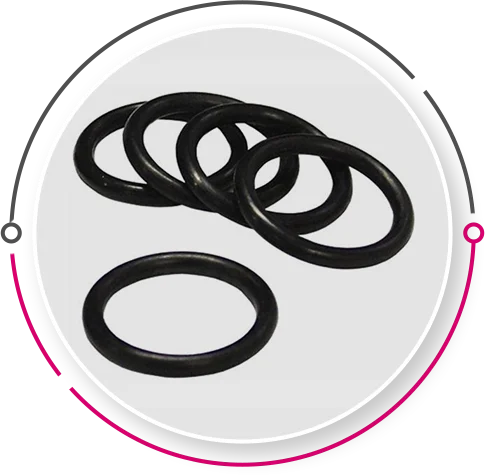

Static O-Rings
Static O-rings are used in applications where there is no relative movement between sealing surfaces. They are intended to resist pressures, to not leak, and to provide vacuum integrity by either axial or radial compression sealing.

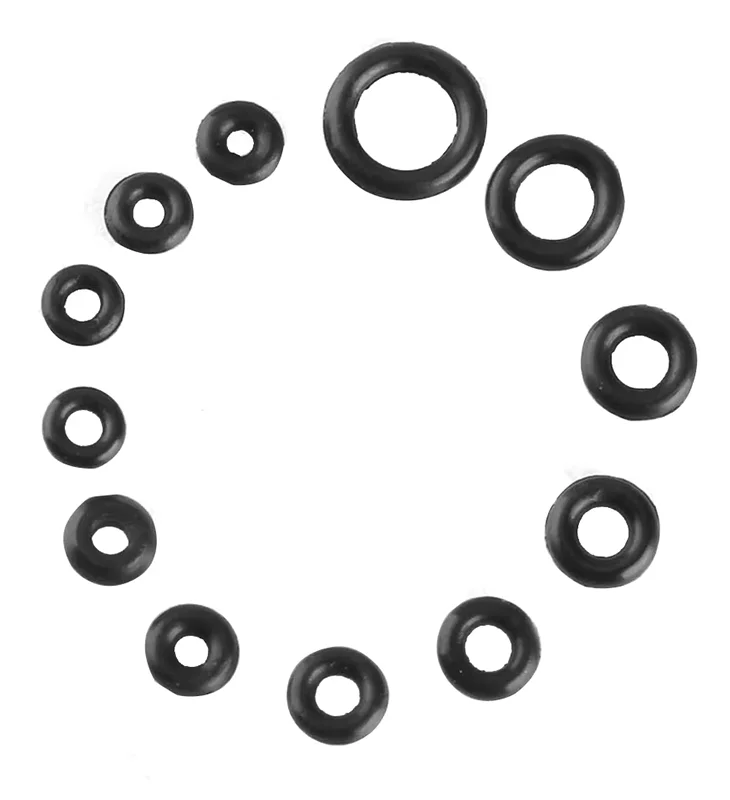

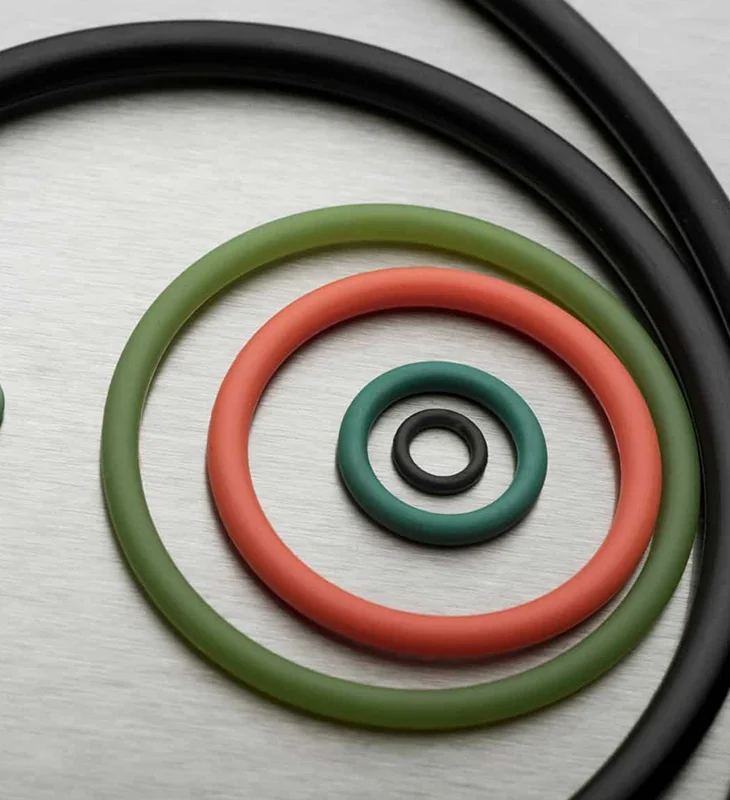

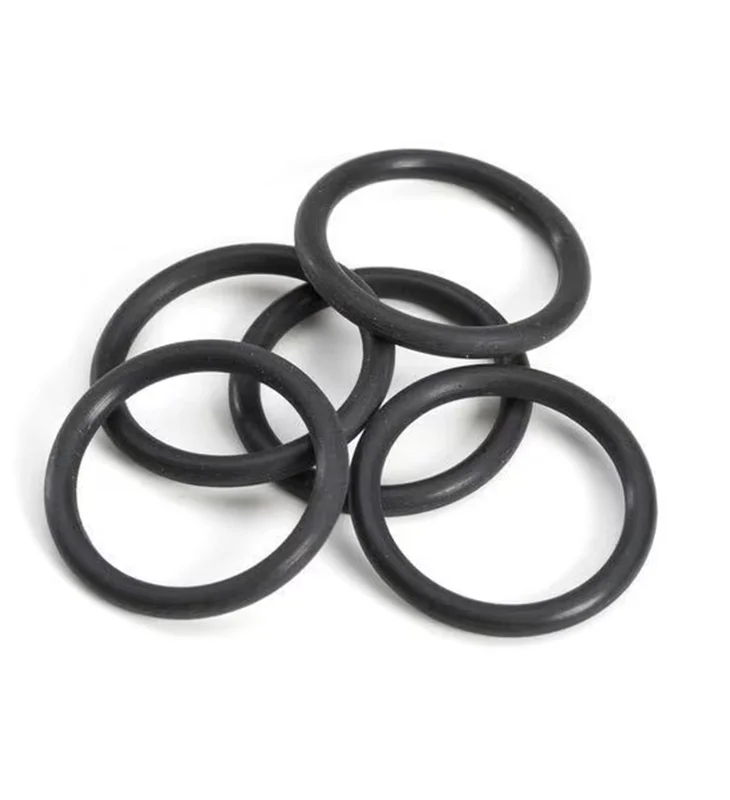

Rubber O-rings Manufacturers in India
Rubber and silicone O-rings are round rubber seals that sit inside a groove and are compressed between two parts to prevent the leakage of liquids or gases. The choice of right rubber O-ring is based on the fluid or chemical to be sealed, the operating temperature, pressure, lubrication and working conditions. They can be employed in stationary and moving applications such as reciprocating and rotating parts. Modern Rubber & Plastic Products is a rubber O-ring manufacturer in India, who is providing O-rings in various standard and custom sizes as per your drawing, sample and specifications for automotive, hydraulic, pneumatic, plumbing and all other industrial applications.
High Quality
Best Price
Effective Service
Product Specifications
| Feature | Specification Details |
|---|---|
| Brand | Modern Rubber & Plastic |
| Product Type | Rubber O-rings / Silicone O-rings |
| Quality System | ISO 9001 Certified |
| Size Range | 3 mm to 500 mm (custom sizes to drawing or sample) |
| Material Options | NBR, EPDM, Neoprene (CR), FKM (Viton), Silicone, HNBR, Natural Rubber, TPE (customisable) |
| Standards | AS568, BS1806, DIN 3771 |
| Usage | Pumps, valves, hydraulic & pneumatic systems, automotive, plumbing, industrial equipment |
| Approx. Price | ₹5 – ₹1,500+ per piece (varies by size, material & specification) |
Rubber O-ring Material Selection Guide
Choosing the right elastomer is the single most important decision in O-ring performance — the wrong compound swells, hardens or fails; the right one seals for years. Match material to your operating conditions, then confirm the grade with our team.
| Property | NR | SBR | NBR | CR | EPDM | HNBR | ACM | CSM | SILICONE | FKM (VITON) |
|---|---|---|---|---|---|---|---|---|---|---|
| Hardness Range (Shore A) | 40-90 | 35-90 | 40-90 | 40-80 | 40-90 | 40-90 | 40-80 | 40-80 | 30-80 | 50-90 |
| High Temp (°C) | 100 | 120 | 130 | 130 | 150 | 150 | 180 | 150 | 230 | 225 |
| Low Temp (°C) | -50 | -55 | -45 | -40 | -50 | -45 | -25 | -40 | -60 | -15 |
| Steam Resistance | F | F | F | P | G | G | P | E | E | E |
E = Excellent · G = Good · F = Fair · P = Poor
O-ring Size Reference
Common AS568 standard sizes are shown below as a quick reference. These are widely used dash-number sizes; we also supply BS1806, DIN 3771, metric and fully custom sizes.
| AS568 Dash | Inner Dia (mm) | Cross-section (mm) |
|---|---|---|
| -010 | 6.07 | 1.78 |
| -014 | 12.42 | 1.78 |
| -110 | 9.19 | 2.62 |
| -116 | 20.29 | 2.62 |
| -210 | 18.64 | 3.53 |
| -214 | 25.00 | 3.53 |
| -325 | 37.69 | 5.33 |
| -425 | 113.67 | 6.99 |
Need a size outside this list? Share your drawing or a sample and we'll match or manufacture it.
O-Ring Types & Sizes
We offer a wide selection of Rubber O-rings in various sizes (3 mm to 500 mm) and material grades/costs to meet a variety of sealing requirements. Our Rubber O-Rings are used for both static and dynamic sealing, suitable for a variety of applications including industrial, automotive, hydraulic, pneumatic, and process systems. Also, custom-made O-ring with accurate inner diameter, outer diameter, cross section and thickness as per application requirement is manufactured.

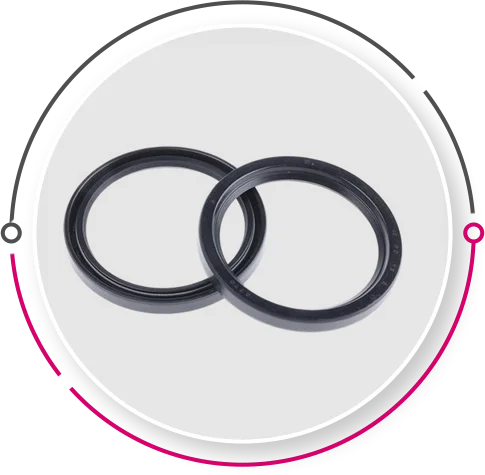

Dynamic O-Rings
Dynamic O-rings are designed for use in applications that entail reciprocating or rotating motion. These O-rings are typically employed in pistons, cylinders, shafts and hydraulic systems and are designed to offer reliable sealing in continuous motion.

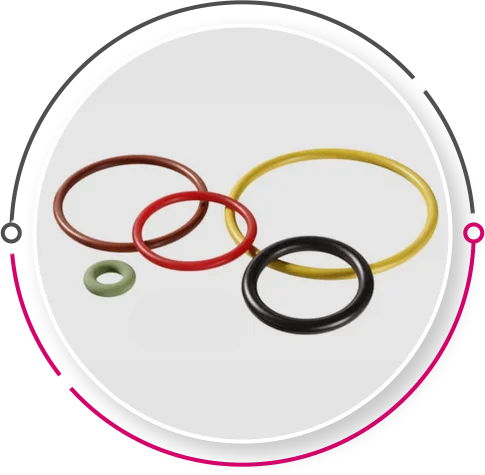

Custom O-Rings
We are able to make custom O-rings to a precise dimensional specification such as inner diameter, outer diameter, cross sectional thickness, and special profiles. Special solutions can be provided for any sealing, pressure, temperature, and media compatibility needs.

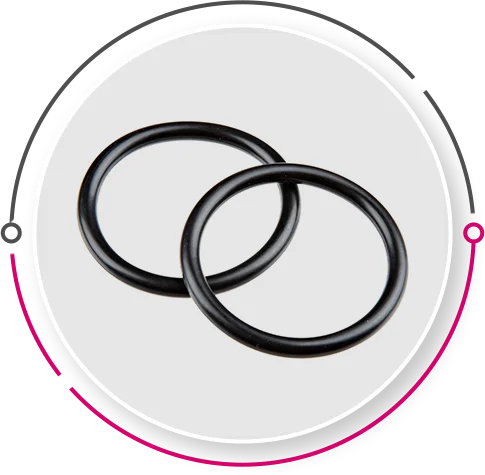

Standard O-Rings
We sell standard O-ring products in a wide variety of sizes that conform to internationally accepted specifications such as AS568, BS1806, DIN 3771 and metric sizes. We have a wide range of standard sizes, allowing us to meet both regular production needs and emergency replacement needs.
Types of Rubber O-Rings
Custom O-Rings
Dynamic O-Rings
Standard O-Rings
Static O-Rings
Why choose Modern Rubber and Plastic?
Leak-proof sealing performance for reliable operation across industrial applications.
Long service life with excellent resistance to wear, reducing replacement and maintenance costs.
Available in a wide range of materials including NBR, EPDM, Silicone, Viton (FKM), Neoprene, and Natural Rubber.
Custom sizes, profiles, and material grades manufactured to meet specific application requirements.
Superior resistance to pressure, temperature variations, chemicals, oils, and harsh operating environments.
High dimensional accuracy and stringent quality control ensure consistent performance and dependable sealing reliability.
Industries We Serve
Plumbing & Bathware
Automobile
Home Appliance
Electrical
Oil & Gas
Medical Equipment
Application of Rubber O-rings

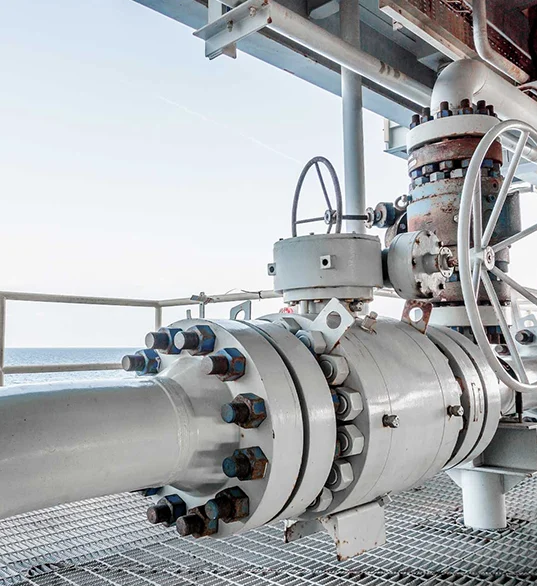

Pumps and Valves
Reliable sealing solutions for pumps and valve applications

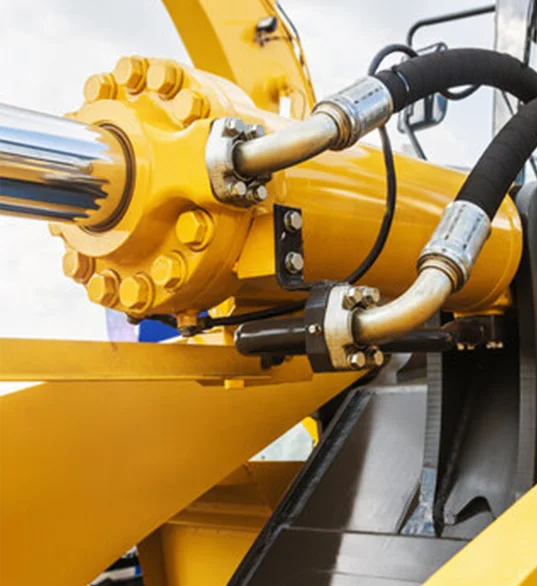

Hydraulic and Pneumatic Systems
High-performance sealing for hydraulic and pneumatic equipment

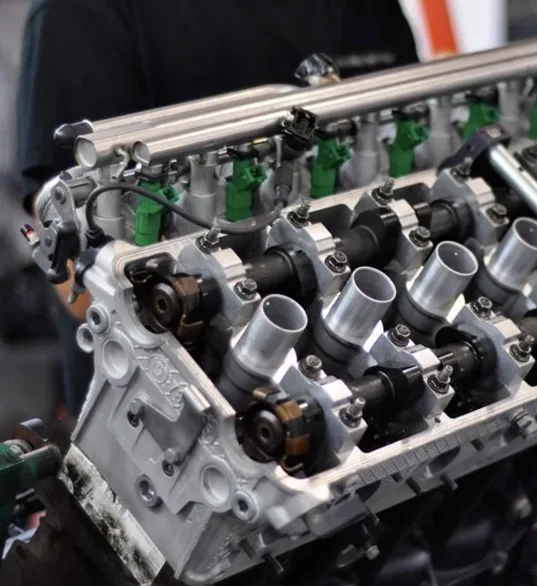

Automotive Engines and Assemblies
Precision sealing for automotive engine components
Industrial Machinery and Equipment
Durable sealing for industrial machinery applications

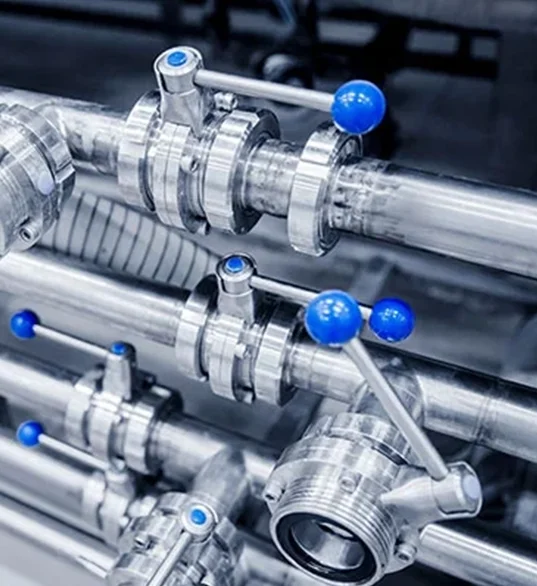

Plumbing and Fluid Sealing Systems
Effective sealing for plumbing and fluid management
Frequently Asked Questions
What are rubber O-rings used for?
They are used to seal joints and prevent leakage of liquids or gases.
What is the difference between rubber and silicone O-rings?
Rubber O-rings offer strong sealing and wear resistance, while silicone O-rings handle higher temperatures and remain flexible.
Are rubber O-rings suitable for high-temperature applications?
Yes, when made from heat-resistant rubber compounds.
How long do rubber O-rings last?
Their lifespan depends on usage and conditions, but they are designed for long-term use.
Are O-rings used for static or dynamic sealing?
Yes, O-rings are used for both static and dynamic sealing applications.
What rubber O-ring sizes can you manufacture?
We manufacture O-rings from 3 mm to 500 mm in standard and custom sizes as per your drawing or sample.
Can you make O-rings from a drawing or a sample?
Yes, we manufacture O-rings to your drawing, sample or required dimensions, material and hardness.
Which O-ring material should I choose?
It depends on the application. NBR suits oils and fuels, EPDM suits water and weather, FKM suits heat and chemicals, and Silicone suits high and low temperatures.
Do you export rubber O-rings outside India?
Yes, we supply rubber O-rings across India and export to customers in Europe, the Middle East and Africa.
