Rubber Seals Manufacturers in India
Modern Rubber & Plastics is a leading rubber seals manufacturer & supplier, engineering high-performance sealing solutions for industrial applications across India, Europe, the Middle East, and Africa. We produce precision static and dynamic seals engineered to withstand extreme pressures, aggressive fluids, and severe temperatures.
We manufacture custom and standard seals including lip, rod, piston, chevron, and quad rings in sizes from 1 mm to 1,200 mm ID. Utilizing high-grade Viton® (FKM), EPDM, Nitrile (NBR), and Silicone, our engineering team works directly from CAD drawings, physical samples, or specs to deliver ISO 9001-certified, tight-tolerance rubber components built for long-term operational reliability.
High Quality
Best Price
Effective Service

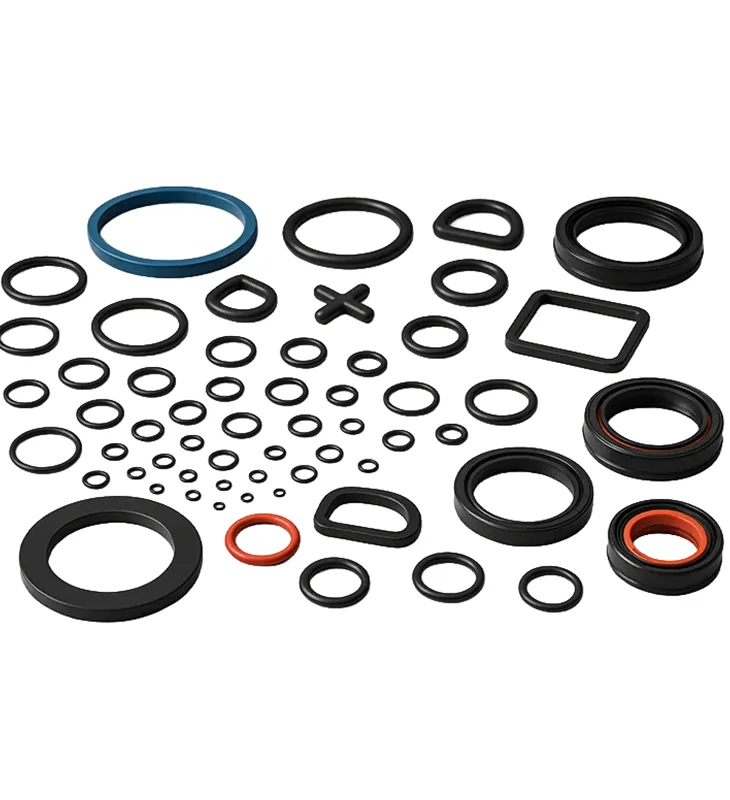

What We Manufacture Rubber Seals
We are a made to order rubber seals manufacturer, making seals to your required size, profile, hardness and material. Engineering drawings, physical samples or specs are used. Our staff can also advise you on the proper seal profile and compound for your operating conditions. We produce dynamic and static seals for prototype, low volume and bulk manufacturing, and have process control and quality consistency between production batches.
Technical Specifications
| Feature / Parameter | Manufacturing & Technical Capability |
|---|---|
| Dimensional / Diameter Range | Inside Diameters (ID) from 1 mm up to 1,200 mm; wall thicknesses from 0.5 mm upwards |
| Manufacturing Processes | Compression Moulding, Transfer Moulding, Injection Moulding, Continuous Extrusion |
| Hardness Range | 30 Shore A to 90 Shore A (custom durometer blending available) |
| Dimensional Tolerances | Strict adherence to ISO 3302-1 Class E1 / M1 precision tolerances |
| Surface Finish & Tooling | In-house CNC die & mould making; polished tool finishes up to Ra 0.2 µm |
| Production Flexibility | Rapid prototyping, low-volume custom batches, and high-volume OEM supply |
Rubber Material Selection Guide
Choosing the right elastomer is the single most important decision in seal performance. The wrong compound leaks, hardens, swells or cracks; the right one runs for years. Use the guide below to match material to your operating conditions, then talk to our team to confirm the grade.
| Property | NR | SBR | NBR | CR | EPDM | HNBR | ACM | CSM | SILICONE | FKM (VITON) |
|---|---|---|---|---|---|---|---|---|---|---|
| Hardness (Shore A) | 40-90 | 35-90 | 40-90 | 40-80 | 40-90 | 40-90 | 40-80 | 40-80 | 30-80 | 50-90 |
| High Temp (°C) | 100 | 120 | 130 | 130 | 150 | 150 | 180 | 150 | 230 | 225 |
| Low Temp (°C) | -50 | -55 | -45 | -40 | -50 | -45 | -25 | -40 | -60 | -15 |
| Steam Resistance | F | F | F | P | G | G | P | E | E | E |
Elastomer Material Selection Guide
| Polymer Elastomer | Common Name | Hardness Range (Shore A) | Low Temp Limit (°C) | High Temp Limit (°C) | Steam Resistance Rating | Primary Application Environment |
|---|---|---|---|---|---|---|
| NR | Natural Rubber | 30 – 90 | -50°C | +80°C | Fair | High tensile strength, dynamic fatigue resistance, abrasive wear |
| SBR | Styrene-Butadiene | 40 – 90 | -40°C | +100°C | Good | General-purpose industrial sealing, brake fluids, water systems |
| NBR | Nitrile / Buna-N | 40 – 90 | -30°C | +120°C | Good | Mineral oils, greases, hydraulic fluids, petroleum fuels |
| CR | Neoprene / Chloroprene | 40 – 90 | -35°C | +120°C | Good | Weathering, ozone, mild acids, refrigeration fluids, marine |
| EPDM | Ethylene Propylene | 40 – 90 | -50°C | +150°C | Excellent | Hot water, high-pressure steam, outdoor weathering, brake fluids |
| HNBR | Hydrogenated Nitrile | 50 – 90 | -30°C | +150°C | Good | High-pressure oilfield tools, automotive timing belts, aggressive fluids |
| ACM | Polyacrylate | 45 – 85 | -10°C | +150°C | Poor | High-temperature transmission oils, ATF, engine oil sealing |
| CSM | Hypalon | 45 – 90 | -30°C | +140°C | Good | Chemical processing, oxidation/ozone exposure, industrial acids |
| Silicone | VMQ / Silicone | 30 – 80 | -60°C | +230°C | Fair | Extreme temperatures, medical, food-grade, low toxic emissions |
| FKM | Viton® / Fluorocarbon | 50 – 90 | -20°C | +250°C | Excellent | Harsh chemicals, aggressive fuels, high vacuum, severe heat |
Types of Rubber Seals We Manufacture
We manufacture a wide range of seal profiles for dynamic and static sealing. Each is produced to your dimensions in the material suited to the duty.

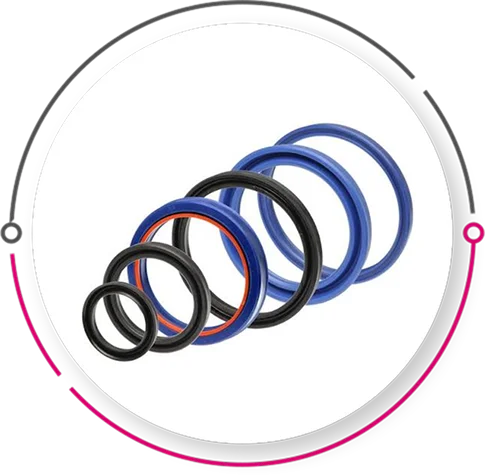

Rod Seals

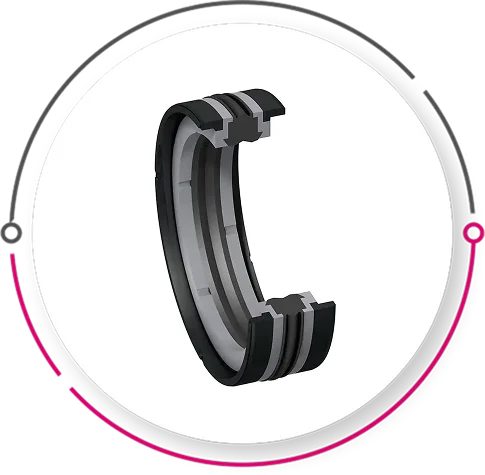

Piston Seals

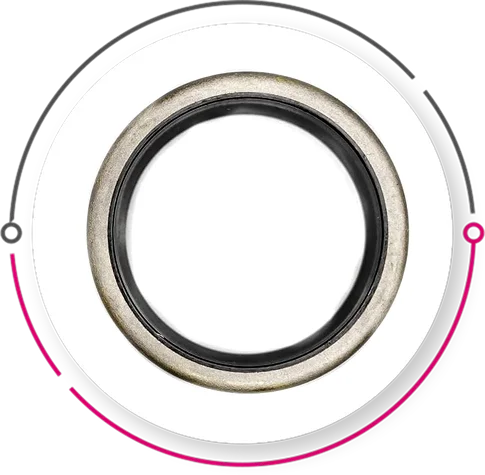

Wiper / Scraper Seals

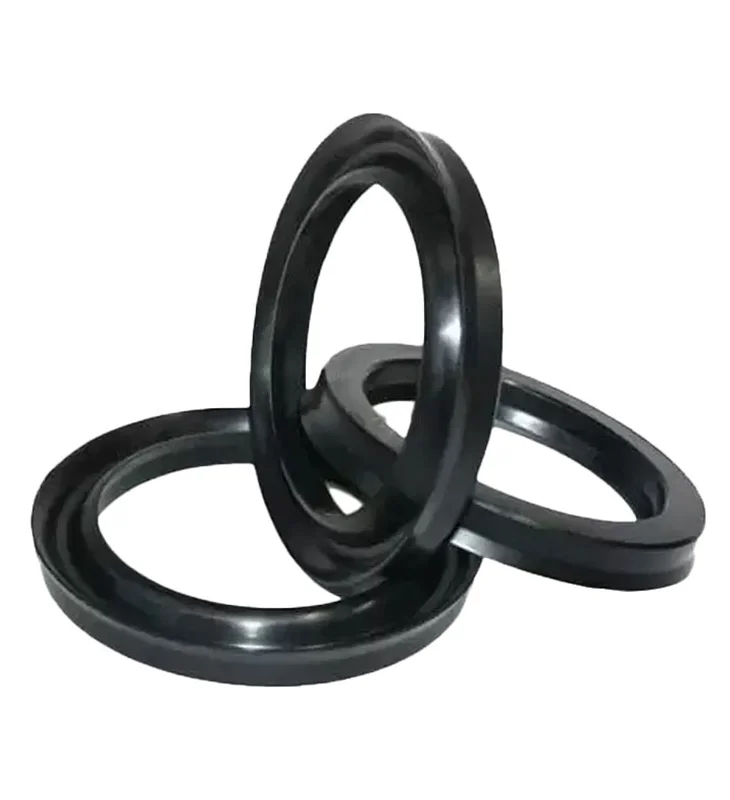

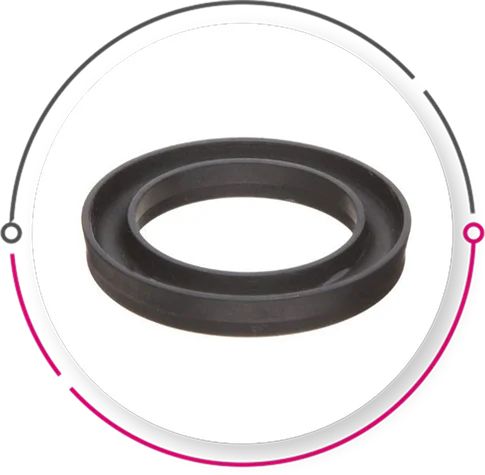

U-Cup Seals

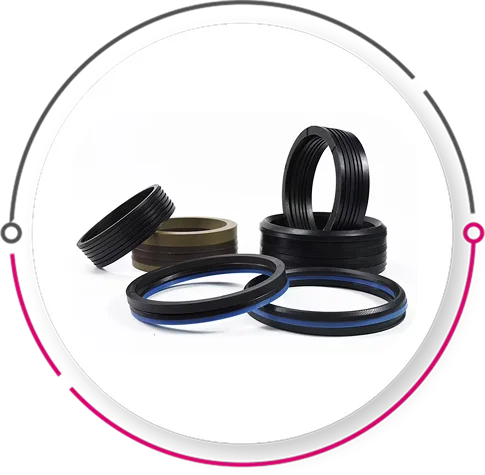

V-Ring / Vee Seals
.webp "Quad Rings (X-Rings)")

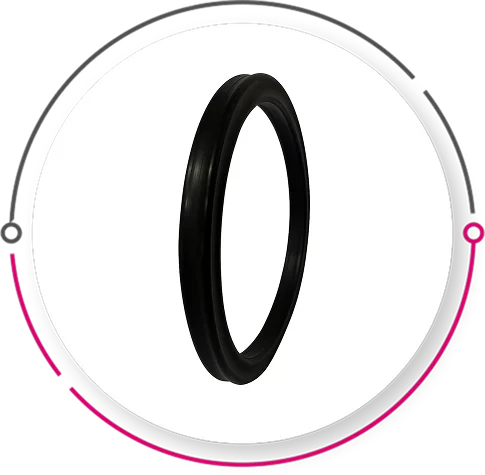

Quad Rings (X-Rings)

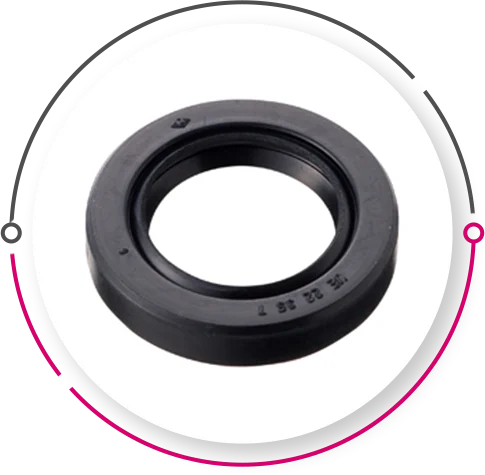

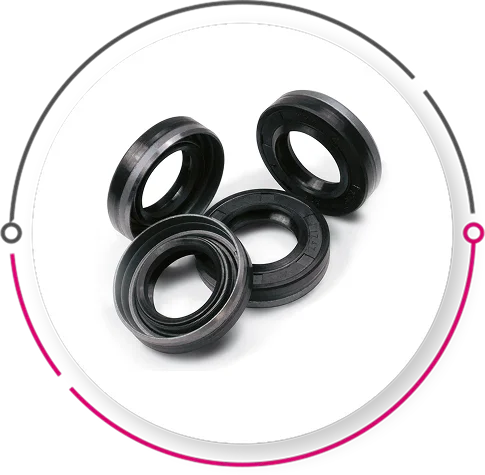

Rotary Shaft Seals

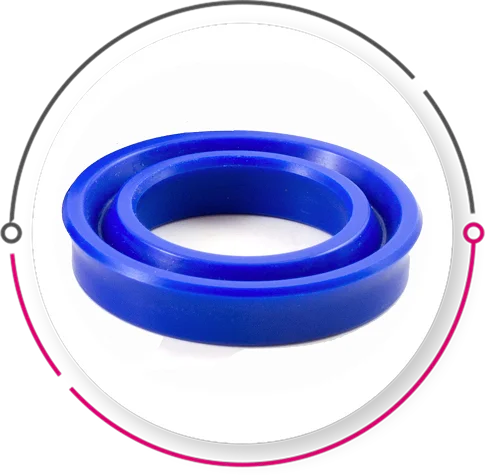

Cup Seals

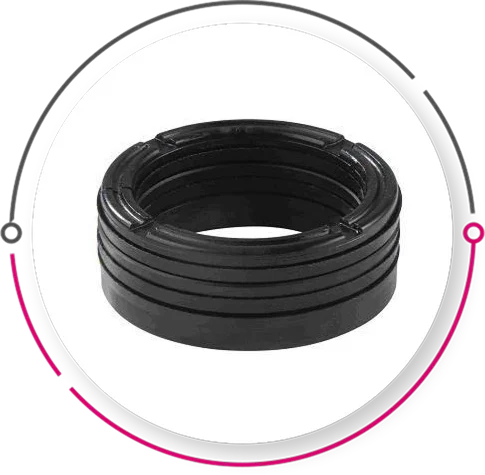

Chevron / Vee Packing

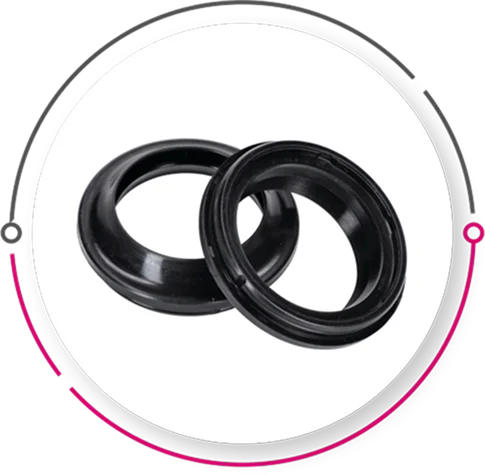

Dust / Air Seals

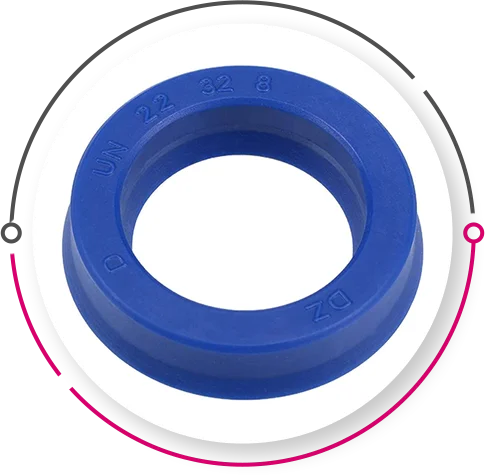

Hydraulic Seals

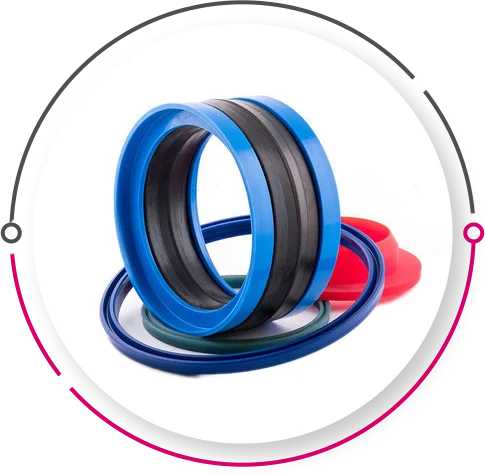

Pneumatic Seals
Industries We Serve
Plumbing & Bathware
Automobile
Home Appliance
Electrical
Oil & Gas
Medical Equipment
Application of Rubber Seals
.webp)

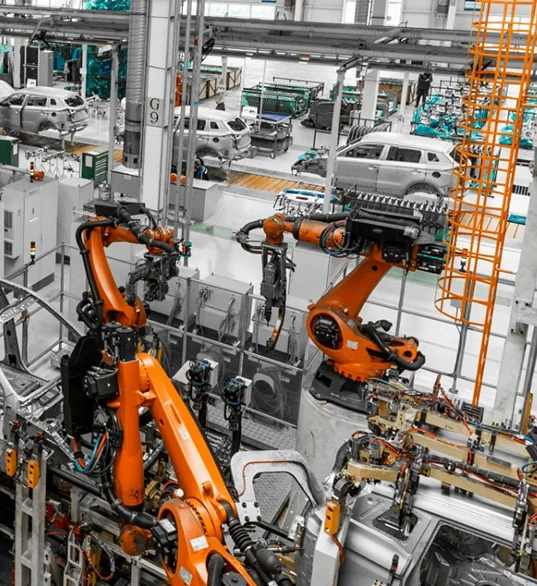

Industrial Machinery
Reliable sealing solutions for industrial machinery applications

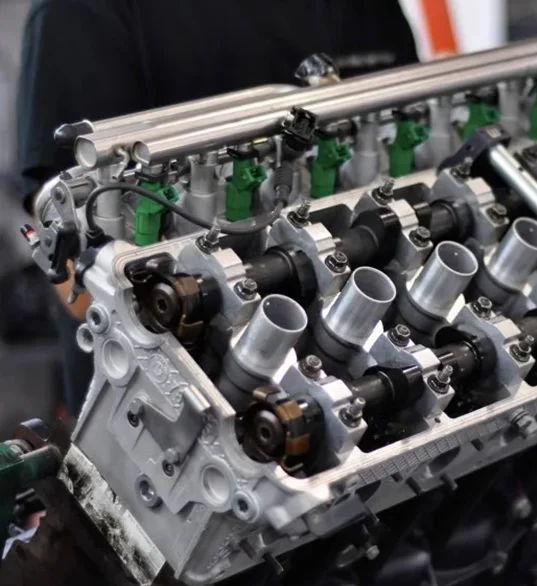

Automotive Engines & Gearboxes
Durable seals for automotive engines and gearboxes

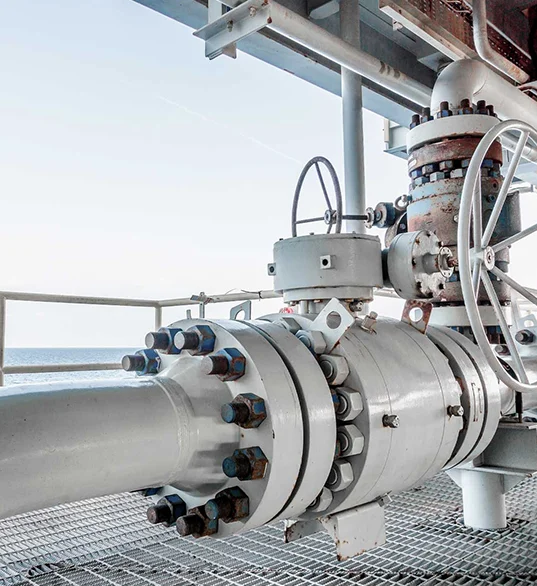

Pumps & Valves
High-performance seals for pumps and valves

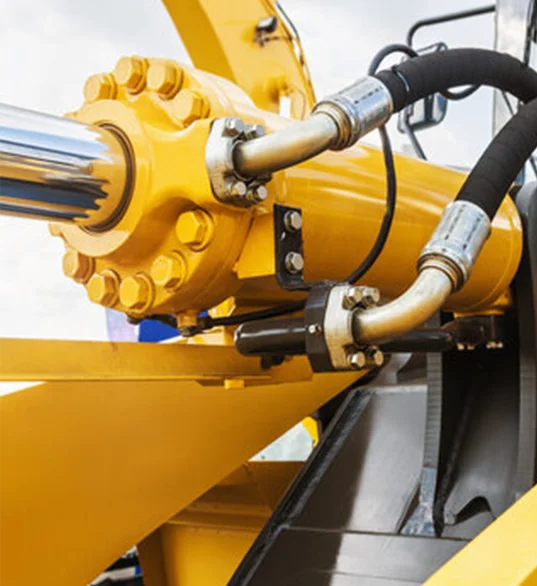

Hydraulic & Pneumatic Systems
Precision seals for hydraulic and pneumatic systems
Mechanical Assemblies
Quality seals for various mechanical assemblies
Frequently Asked Questions
Can rubber seals handle pressure and mechanical stress?
Yes, rubber seals are built to handle pressure and mechanical stress while maintaining a reliable seal.
Are rubber seals reusable or one-time use?
Many rubber seals can be reused if they're in good condition, though some high-pressure applications may need replacements.
Why choose Modern Rubber & Plastic for rubber seals?
We offer durable, high-quality rubber seals that can be customized to fit a wide range of industrial and automotive needs.
Can rubber seals be made in custom sizes and shapes?
Yes, we can manufacture rubber seals in any size, shape, or material to suit your specific requirements.
Which rubber seal material is best for chemical resistance?
The Viton (FKM) and Nitrile (NBR) are excellent choices for resistance against chemicals, oils, and harsh environments.
Can you manufacture rubber seals from our drawing or a physical sample?
Yes. We manufacture custom rubber seals to your engineering drawing, a physical sample, or your written specification. If you have a sample, we analyse its dimensions and material properties, develop the mould, and provide trial samples before bulk production.
Which rubber material should I choose for my application?
It depends on the media, temperature and pressure. As a guide: NBR for oils and fuels, EPDM for water, steam and weather, Viton (FKM) for high heat and chemicals, Silicone for extreme temperatures and hygienic service, and Neoprene for balanced general-purpose duty. Share your operating conditions and we'll recommend the right compound.
Do you supply standard sizes or only custom seals?
We are primarily a custom manufacturer of seals and other rubber products — they are produced to your required size, profile and material.
Do you export rubber seals outside India?
Yes. We supply customers internationally, including Europe, the Middle East and Africa, alongside our domestic customers across India.
Can you manufacture custom rubber seals from a physical sample or technical drawing?
Yes. We can manufacture seals from physical samples, 2D drawings (PDF/DWG), or 3D CAD models (STEP/IGES).
How do I know which rubber material is right for my application?
Material selection depends on the operating media, temperature, and movement. Common options include NBR for oils, EPDM for steam and outdoor use, and FKM/Viton® for aggressive chemicals.
What is the difference between an O-Ring and a Quad Ring (X-Ring)?
An O-Ring has a round cross-section, while a Quad Ring has an X-shaped cross-section. Quad Rings provide better sealing, reduce twisting, and retain lubrication more effectively.
